Maximum Flow. Minimal Effort.

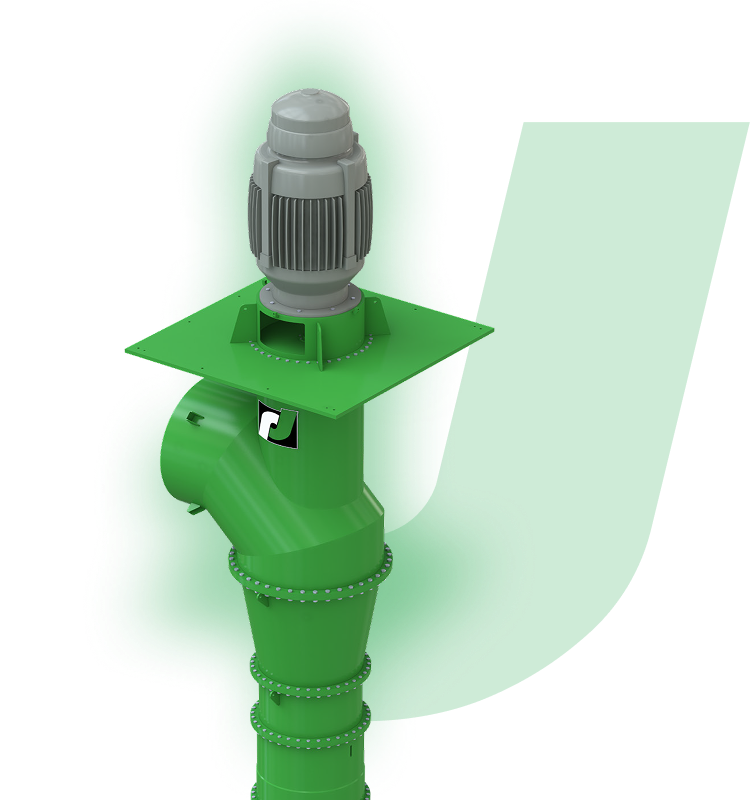

JP Vertical Propeller Pump

The Johnston JP Vertical Propeller Pump is built for efficiency in high-capacity, low-head municipal applications. Its streamlined design delivers superior flow with minimal energy consumption, making it a cost-effective choice for stormwater, flood control, and wastewater treatment systems. The JP’s heavy-duty components and customizable configurations ensure consistent performance even under demanding conditions, keeping your operations moving with confidence and control.

Speak to an Industry Expert

Designed & Engineered to Meet Project Requirements

Our JP pump is engineered to order and can be manufactured from various materials, including cast iron, carbon steel, 316 stainless steel, duplex, super duplex, and bronze, based on application requirements. The JP can fit into any existing infrastructure, as it’s available with above and below ground discharge connections.

Drainage

Flood Control

High Pressure Pumping

Pipeline Pumping

Water Intake

Water Transport

Desalination

Irrigation

Water Supply

Breaking Down the JP Vertical Pump

Standard Features

Our JP pump is designed to withstand demanding applications and harsh environments. Use our interactive tool to explore some of the unique features:

Reliable. Durable. Johnston.

Why Do Customers Love JP?

The JP Vertical Propeller Pump isn’t just reliable—it’s versatile. It can be coated for corrosive and abrasive systems, can be adapted to various applications, and is customized to location and pump length. Other key benefits of JP include:

Handles Extreme Flow: Up to 240,000 gpm capacity.

Space-Saving Design: Minimal footprint required.

Low NPSHa

Highly Adaptable: Above or below base discharge options.

Low Operating Speeds: Longer life and reduced wear.

Corrosion-Resistant Options: Multiple coatings for harsh environments.

Trouble-Free Operation: Minimal maintenance and easy servicing.

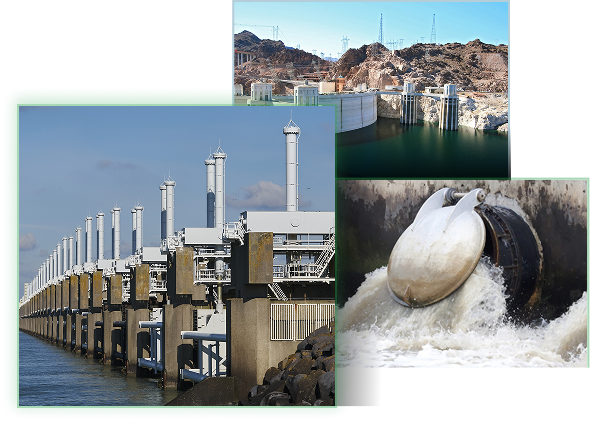

Use cases for JP Vertical Propeller Pump

View Performance Data

Technical Data

View the table below for specific information regarding our JP pump.

Pump Part	Material
Cast Parts	Cast iron, Cast Steel, Ductile Iron, 316 stainless steel, duplex, super duplex and bronze
Shafts	12% chrome, 316 stainless steel duplex, super duplex and monel
Fabrications	Carbon steel, 316l, duplex and super duplex
Bearings	Various metallic and non-metallic bearing materials to meet application requirements

	60 Hz
Bowl sizes	8 to 72 in.
Capacities	Up to 240,000 USgpm
Heads	up to 40 ft.
Temperatures	up to 120°F

JP Vertical Propeller Pump performance range graph

Increase Efficiency With These Optional Configurations

Available Configurations

All Johnston products, including the JP Vertical Propeller Pump, can be configured with optional, performance-boosting features, including:

Discharge Head

Below-ground discharge heads are available. Each comes with a segmented elbow designed to optimize pump efficiency. The discharge nozzle can be plain-end or flanged. The motor stand is mounted above ground and is designed to support the weight and provide the maximum clearance for multiple stuffing box options.

Strainers

Basket strainers are available in stainless steel.

Enclosed Lineshaft

Optional enclosed lineshaft is designed for deep well service where abrasives and contaminates are present.

Interested in the JP?

Learn More

Get more information about the JP pump, including performance specifications, installation guidance, and more.

Brochure

Are you interested in learning more about our JP pump? Download our brochure for additional data.

Download

Manual

Have you purchased the JP pump? Download our manual for comprehensive installations instructions, maintenance requirements, and troubleshooting.
